Führungsrollen mit Nieten

Das Bild kann vom Produkt abweichen. Weitere Informationen finden Sie in den technischen Daten.

Führungsrollen mit Nieten

Führungsrollen mit Nieten werden speziell für verbesserte Traktion und Stabilität entwickelt und verfügen über eingebettete Nieten, die die Haftung auf rutschigen oder unebenen Oberflächen verbessern. Sie bieten überlegene Leistung unter schwierigen Bedingungen, erhöhte Haltbarkeit und zuverlässigen Betrieb.

Standard

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN/VDEh,DIN/VDEh

Material

440C Edelstahl/Polymer (umspritzt) 440C/52100

Gewicht

6g-403g

Außendurchmesser (D)

14.83mm-59.94mm

Marke

QIBR/OEM/Neutral/BWC

Verpackung

QIBR/Standard-Industriepaket/OEM

Anwendungen

Elektronik, Medizin, Labor

Filter

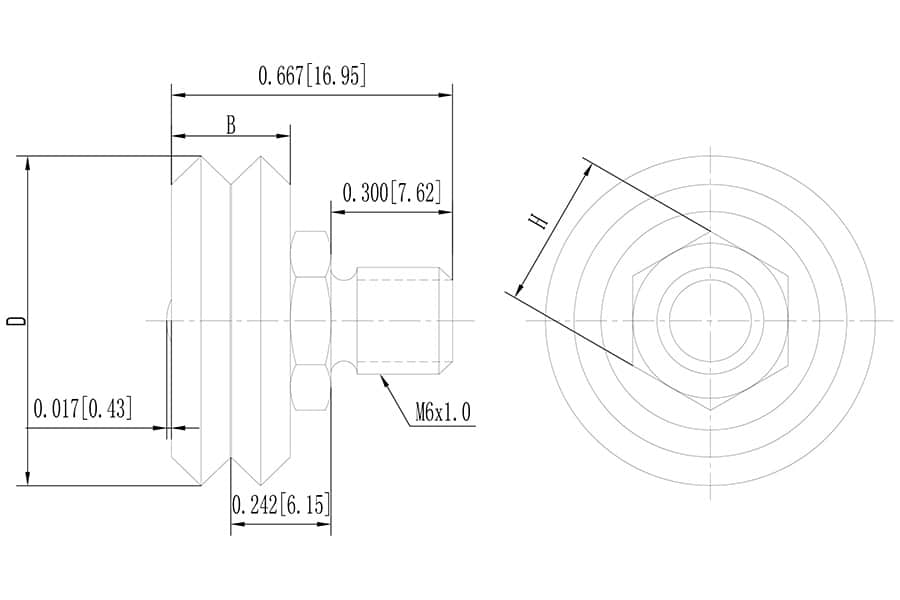

Nr. Produkt Produktnummer Außendurchmesser (D) Gewicht Breite (B) Befestigungssechskant (H)
1 SWIC0P/ SWIC0P 14.83 mm 6 g 6.35 mm 11 mm
2 SWSC0A/ SWSC0A 14.83 mm 9 g 6.35 mm 9.53 mm
3 SWSC0XA/ SWSC0XA 14.83 mm 9 g 6.35 mm 9.53 mm
4 SWSC0SS227A/ SWSC0SS227A 14.83 mm 9 g 6.35 mm 9.53 mm
5 SWIE0P/ SWIE0P 14.83 mm 6 g 6.35 mm 11 mm
6 SWSE0A/ SWSE0A 14.83 mm 9 g 6.35 mm 9.53 mm
7 SWSE0XA/ SWSE0XA 14.83 mm 9 g 6.35 mm 9.53 mm
8 SWSE0SS227A/ SWSE0SS227A 14.83 mm 9 g 6.35 mm 9.53 mm
9 SWAC0/ SWAC0 14.83 mm 9 g 6.35 mm 11 mm
10 SWAC0X/ SWAC0X 14.83 mm 9 g 6.35 mm 11 mm
11 SWAC0SS227/ SWAC0SS227 14.83 mm 9 g 6.35 mm 11 mm
12 SWAE0/ SWAE0 14.83 mm 9 g 6.35 mm 11 mm
13 SWAE0X/ SWAE0X 14.83 mm 9 g 6.35 mm 11 mm
14 SWAE0SS227/ SWAE0SS227 14.83 mm 9 g 6.35 mm 11 mm
15 SWIC1P/ SWIC1P 19.58 mm 11 g 7.87 mm 12 mm
16 SWSC1A/ SWSC1A 19.58 mm 17 g 7.87 mm 11.11 mm
17 SWSC1XA/ SWSC1XA 19.58 mm 17 g 7.87 mm 11.11 mm
18 SWSC1SSXA/ SWSC1SSXA 19.58 mm 17 g 7.87 mm 11.11 mm
19 SWSC1SS227A/ SWSC1SS227A 19.58 mm 17 g 7.87 mm 11.11 mm
20 SWSC1SS300A/ SWSC1SS300A 19.58 mm 17 g 7.87 mm 11.11 mm
21 SWIE1P/ SWIE1P 19.58 mm 11 g 7.87 mm 12 mm
22 SWSE1A/ SWSE1A 19.58 mm 17 g 7.87 mm 11.11 mm
23 SWSE1XA/ SWSE1XA 19.58 mm 17 g 7.87 mm 11.11 mm
24 SWSE1SSXA/ SWSE1SSXA 19.58 mm 17 g 7.87 mm 11.11 mm
25 SWSE1SS227A/ SWSE1SS227A 19.58 mm 17 g 7.87 mm 11.11 mm
26 SWSE1SS300A/ SWSE1SS300A 19.58 mm 17 g 7.87 mm 11.11 mm
27 SWAC1/ SWAC1 19.58 mm 20 g 7.87 mm 12 mm
28 SWAC1X/ SWAC1X 19.58 mm 20 g 7.87 mm 12 mm
29 SWAC1SSX/ SWAC1SSX 19.58 mm 20 g 7.87 mm 12 mm
30 SWAC1SS227/ SWAC1SS227 19.58 mm 20 g 7.87 mm 12 mm
31 SWAC1SS300/ SWAC1SS300 19.58 mm 20 g 7.87 mm 12 mm
32 SWAE1/ SWAE1 19.58 mm 20 g 7.87 mm 12 mm
33 SWAE1X/ SWAE1X 19.58 mm 20 g 7.87 mm 12 mm
34 SWAE1SSX/ SWAE1SSX 19.58 mm 20 g 7.87 mm 12 mm
35 SWAE1SS227/ SWAE1SS227 19.58 mm 20 g 7.87 mm 12 mm
36 SWAE1SS300/ SWAE1SS300 19.58 mm 20 g 7.87 mm 12 mm
37 SWIC2P/ SWIC2P 30.73 mm 27 g 11.13 mm 14 mm
38 SWSC2XA/ SWSC2XA 30.73 mm 56 g 11.13 mm 14.29 mm
39 SWSC2SSXA/ SWSC2SSXA 30.73 mm 56 g 11.13 mm 14.29 mm
40 SWSC2SS227A/ SWSC2SS227A 30.73 mm 56 g 11.13 mm 14.29 mm
41 SWSC2SS300A/ SWSC2SS300A 30.73 mm 56 g 11.13 mm 14.29 mm
42 SWSCWD2SSXA/ SWSCWD2SSXA 30.73 mm 56 g 11.13 mm 14.29 mm
43 SWIE2P/ SWIE2P 30.73 mm 27 g 11.13 mm 14 mm
44 SWSE2XA/ SWSE2XA 30.73 mm 56 g 11.13 mm 14.29 mm
45 SWSE2SSXA/ SWSE2SSXA 30.73 mm 56 g 11.13 mm 14.29 mm
46 SWSE2SS227A/ SWSE2SS227A 30.73 mm 56 g 11.13 mm 14.29 mm
47 SWSE2SS300A/ SWSE2SS300A 30.73 mm 56 g 11.13 mm 14.29 mm
48 SWSEWD2SSXA/ SWSEWD2SSXA 30.73 mm 56 g 11.13 mm 14.29 mm
49 SWAC2X/ SWAC2X 30.73 mm 75 g 11.13 mm 14 mm
50 SWAC2SSX/ SWAC2SSX 30.73 mm 75 g 11.13 mm 14 mm
51 SWAC2SS227/ SWAC2SS227 30.73 mm 75 g 11.13 mm 14 mm
52 SWAC2SS300/ SWAC2SS300 30.73 mm 75 g 11.13 mm 14 mm
53 SWACWD2SSX/ SWACWD2SSX 30.73 mm 75 g 11.13 mm 14 mm
54 SWAE2X/ SWAE2X 30.73 mm 75 g 11.13 mm 14 mm
55 SWAE2SSX/ SWAE2SSX 30.73 mm 75 g 11.13 mm 14 mm
56 SWAE2SS227/ SWAE2SS227 30.73 mm 75 g 11.13 mm 14 mm
57 SWAE2SS300/ SWAE2SS300 30.73 mm 75 g 11.13 mm 14 mm
58 SWAEWD2SSX/ SWAEWD2SSX 30.73 mm 75 g 11.13 mm 14 mm
59 SWSC3XA/ SWSC3XA 45.8 mm 166 g 15.88 mm 19.05 mm
60 SWSC3SSXA/ SWSC3SSXA 45.8 mm 166 g 15.88 mm 19.05 mm
61 SWSC3SS227A/ SWSC3SS227A 45.8 mm 166 g 15.88 mm 19.05 mm
62 SWSC3SS300A/ SWSC3SS300A 45.8 mm 166 g 15.88 mm 19.05 mm
63 SWSCWD3SSXA/ SWSCWD3SSXA 45.8 mm 166 g 15.88 mm 19.05 mm
64 SWSE3XA/ SWSE3XA 45.8 mm 166 g 15.88 mm 19.05 mm
65 SWSE3SSXA/ SWSE3SSXA 45.8 mm 166 g 15.88 mm 19.05 mm
66 SWSE3SS227A/ SWSE3SS227A 45.8 mm 166 g 15.88 mm 19.05 mm
67 SWSE3SS300A/ SWSE3SS300A 45.8 mm 166 g 15.88 mm 19.05 mm
68 SWSEWD3SSXA/ SWSEWD3SSXA 45.8 mm 166 g 15.88 mm 19.05 mm
69 SWAC3X/ SWAC3X 45.8 mm 193 g 15.88 mm 19 mm
70 SWAC3SSX/ SWAC3SSX 45.8 mm 193 g 15.88 mm 19 mm
71 SWAC3SS227/ SWAC3SS227 45.8 mm 193 g 15.88 mm 19 mm
72 SWAC3SS300/ SWAC3SS300 45.8 mm 193 g 15.88 mm 19 mm
73 SWACWD3SSX/ SWACWD3SSX 45.8 mm 193 g 15.88 mm 19 mm
74 SWAE3X/ SWAE3X 45.8 mm 193 g 15.88 mm 19 mm
75 SWAE3SSX/ SWAE3SSX 45.8 mm 193 g 15.88 mm 19 mm
76 SWAE3SS227/ SWAE3SS227 45.8 mm 193 g 15.88 mm 19 mm
77 SWAE3SS300/ SWAE3SS300 45.8 mm 193 g 15.88 mm 19 mm
78 SWAEWD3SSX/ SWAEWD3SSX 45.8 mm 193 g 15.88 mm 19 mm
79 SWSC4XA/ SWSC4XA 59.94 mm 338 g 19.05 mm 22.23 mm
80 SWSC4SSXA/ SWSC4SSXA 59.94 mm 338 g 19.05 mm 22.23 mm
81 SWSC4SS227A/ SWSC4SS227A 59.94 mm 338 g 19.05 mm 22.23 mm
82 SWSC4SS300A/ SWSC4SS300A 59.94 mm 338 g 19.05 mm 22.23 mm
83 SWSE4XA/ SWSE4XA 59.94 mm 338 g 19.05 mm 22.23 mm
84 SWSE4SSXA/ SWSE4SSXA 59.94 mm 338 g 19.05 mm 22.23 mm
85 SWSE4SS227A/ SWSE4SS227A 59.94 mm 338 g 19.05 mm 22.23 mm
86 SWSE4SS300A/ SWSE4SS300A 59.94 mm 338 g 19.05 mm 22.23 mm
87 SWAC4X/ SWAC4X 59.94 mm 403 g 19.05 mm 22 mm
88 SWAC4SSX/ SWAC4SSX 59.94 mm 403 g 19.05 mm 22 mm
89 SWAC4SS227/ SWAC4SS227 59.94 mm 403 g 19.05 mm 22 mm
90 SWAC4SS300/ SWAC4SS300 59.94 mm 403 g 19.05 mm 22 mm
91 SWAE4X/ SWAE4X 59.94 mm 403 g 19.05 mm 22 mm
92 SWAE4SSX/ SWAE4SSX 59.94 mm 403 g 19.05 mm 22 mm
93 SWAE4SS227/ SWAE4SS227 59.94 mm 403 g 19.05 mm 22 mm
94 SWAE4SS300/ SWAE4SS300 59.94 mm 403 g 19.05 mm 22 mm
